Spring Cloud 应用分析（二）：基础的测试用例

前言

从[Spring Cloud 基础架构]一文中，我们已经知道一个完整的 Spring Cloud 所应当包含的组件以及各个组件和组件之间的基础功能；该篇博文便是根据这个基础架构来构建一个最简单的 Spring Cloud 应用，且包含 Spring Cloud 基础架构中的各个核心的组件；

本文为作者的原创作品，转载需注明出处；

测试用例

描述

思路，创建两个微服务，描述如下，

• 微服务 A，订单系统；
• 微服务 B，库存系统；

用户使用场景，通过订单系统生成订单，在生成订单的同时，通过库存系统扣减库存；该测试用例试图简单的将 Spring Cloud 的各个组件串联起来；

顶层设计

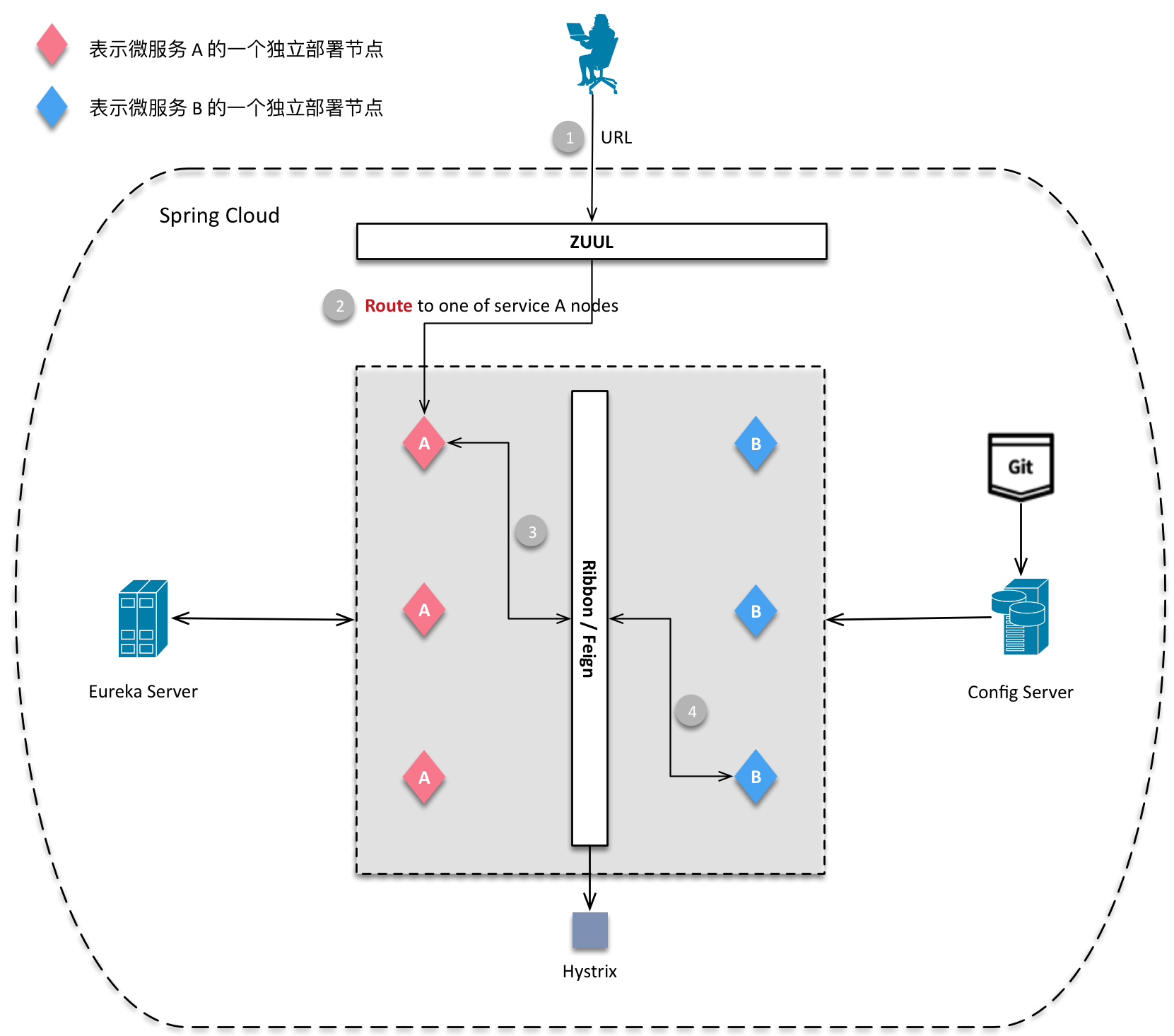

架构如 Spring Cloud 蓝图所示，

图中微服务 A 表示订单系统，微服务 B 表示库存系统；该测试用例通过用户下单并扣减库存的测试案例来描述一个完整的 Spring Cloud 程序的骨架(该骨架中暂时不包含 Config Server )

工程结构

项目的工程骨架如上所示；可以通过 Eclipse 直接进行创建，创建的步骤和相关工程描述大致如下，

1. 先通过 Eclipse Maven Project 创建父类工程 springcloud-demo
   注意，如果要使得当前的 maven 工程成为 parent project，必须在 pom.xml 添加 <packaging>pom</packaging> 节点；配置如下

   <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
     <modelVersion>4.0.0</modelVersion>
     <groupId>org.shangyang.springcloud</groupId>
     <artifactId>test</artifactId>
     <version>0.0.1-SNAPSHOT</version>
     <packaging>pom</packaging>
   </project>

   否则会报错：The parent project must have a packaging type of POM

2. 然后再依次通过使用 maven module，包含如下的模块

   • eureka-server
     微服务注册中心
   • microservice-order
     一个微服务节点工程，注意，该工程包含两个模块，api 和 service；
     api: 对外提供公共访问接口以及 VO
     service: order 内部服务；
   • micorservice-stock
     类同于 microservice-order 微服务
   • zuul-server
     服务网关，服务发现中心；

相关的截图如下，

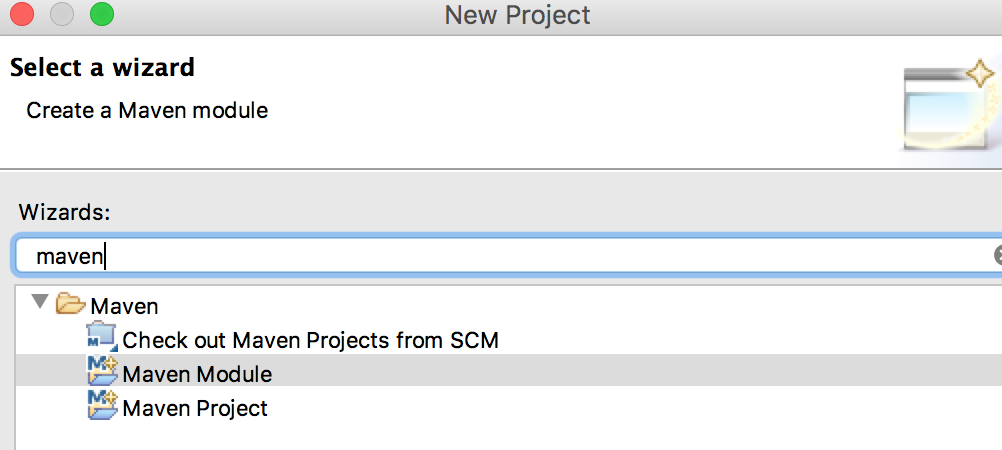

• 如何创建 Maven Project / Maven Module


架构

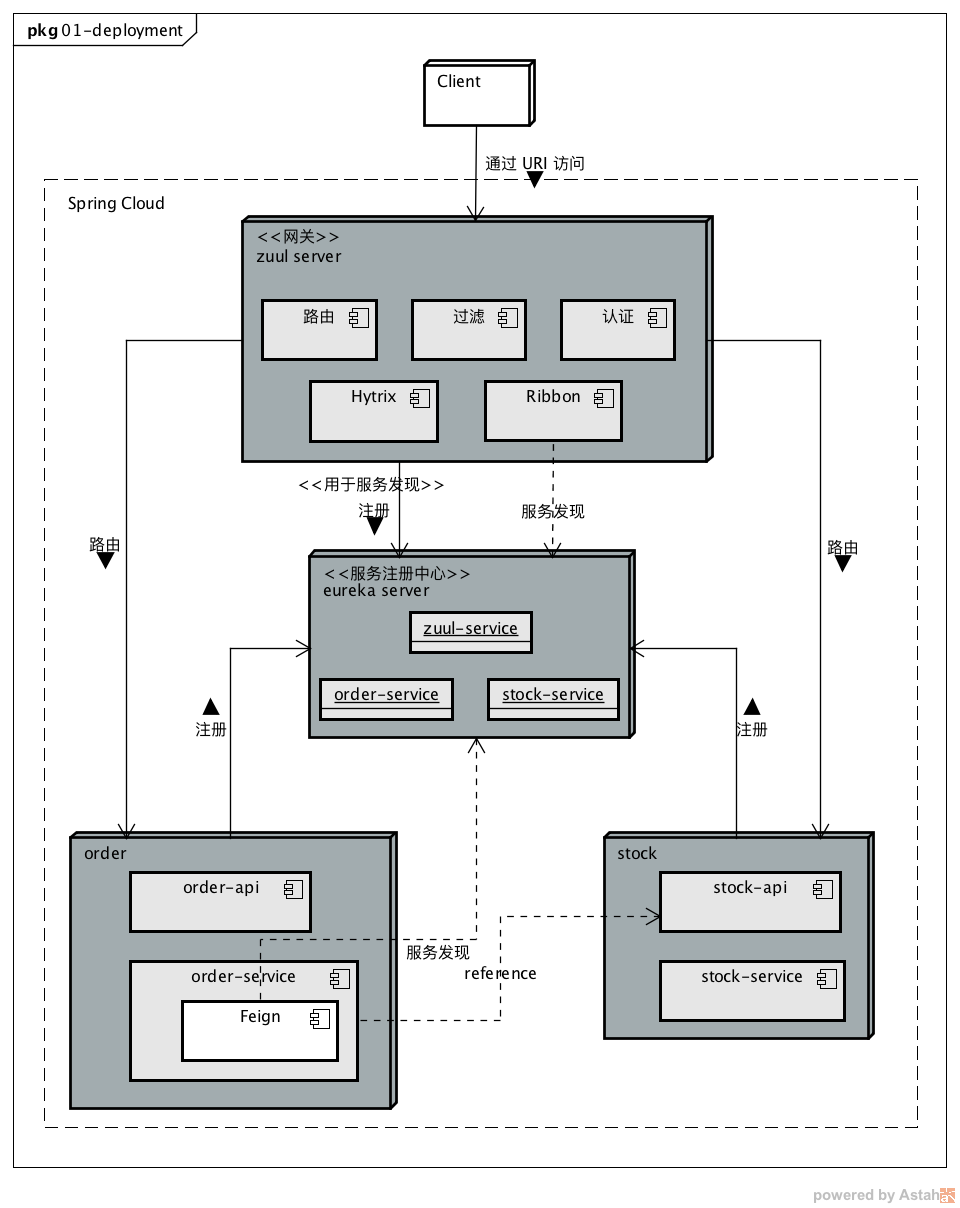

部署图

上图描述了各个组建的部署结构，

• zuul server
  提供了访问路由，认证等网关功能；如果要结合 Eureka 来实现路由，那么首先，需要将 zuul 自己注册到 Eureka 服务注册中心，然后通过组件 Ribbon 来发现服务，最后将客户端的访问转发到该服务上，实现路由功能；
• eureka server

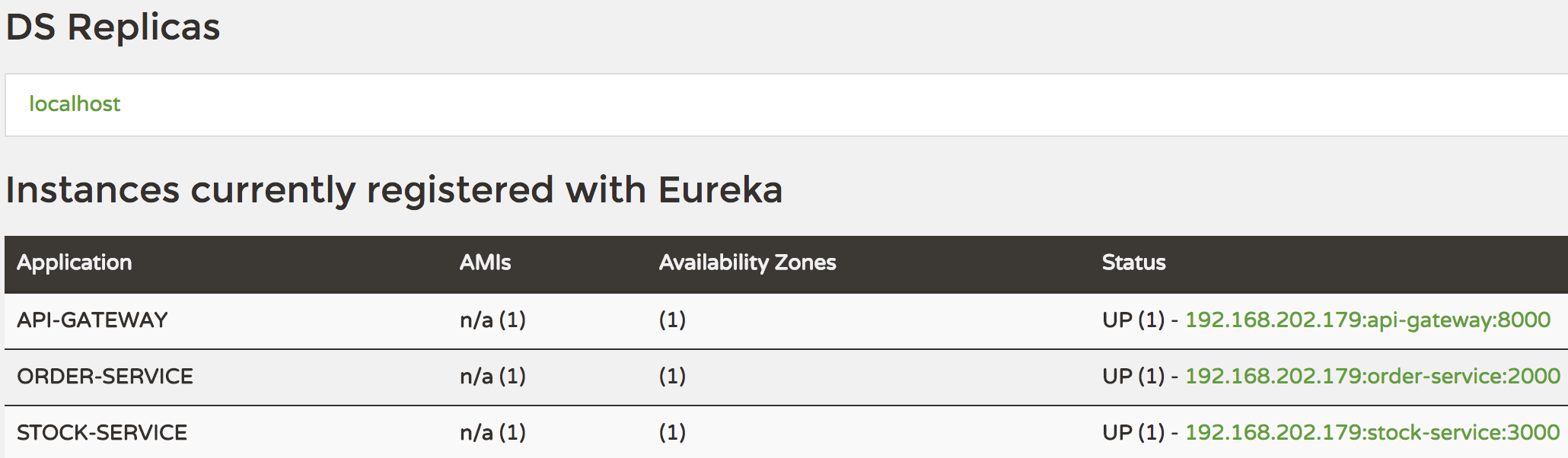

  服务注册中心；访问 eureka server 可以看到如下注册的信息

• order
  注意，order 可以部署成多个节点，并通过 ZUUL 进行负载调度；
  • order api
    对外提供 order 的访问接口和 VO
  • order service
    • 生成订单操作需要引用 stock 微服务接口，所以，order service 模块需要引用 stock-api；
    • Feign 模块用于发现 stock 服务
• stock
  注意，stock 可以部署成多个节点，并通过 ZUUL 进行负载调度；
  • stock api
    对外提供 stock 的访问接口和 VO；本案例中，该 api 主要提供给 Order 微服务使用。
  • stock service
    stock 内部服务实现；

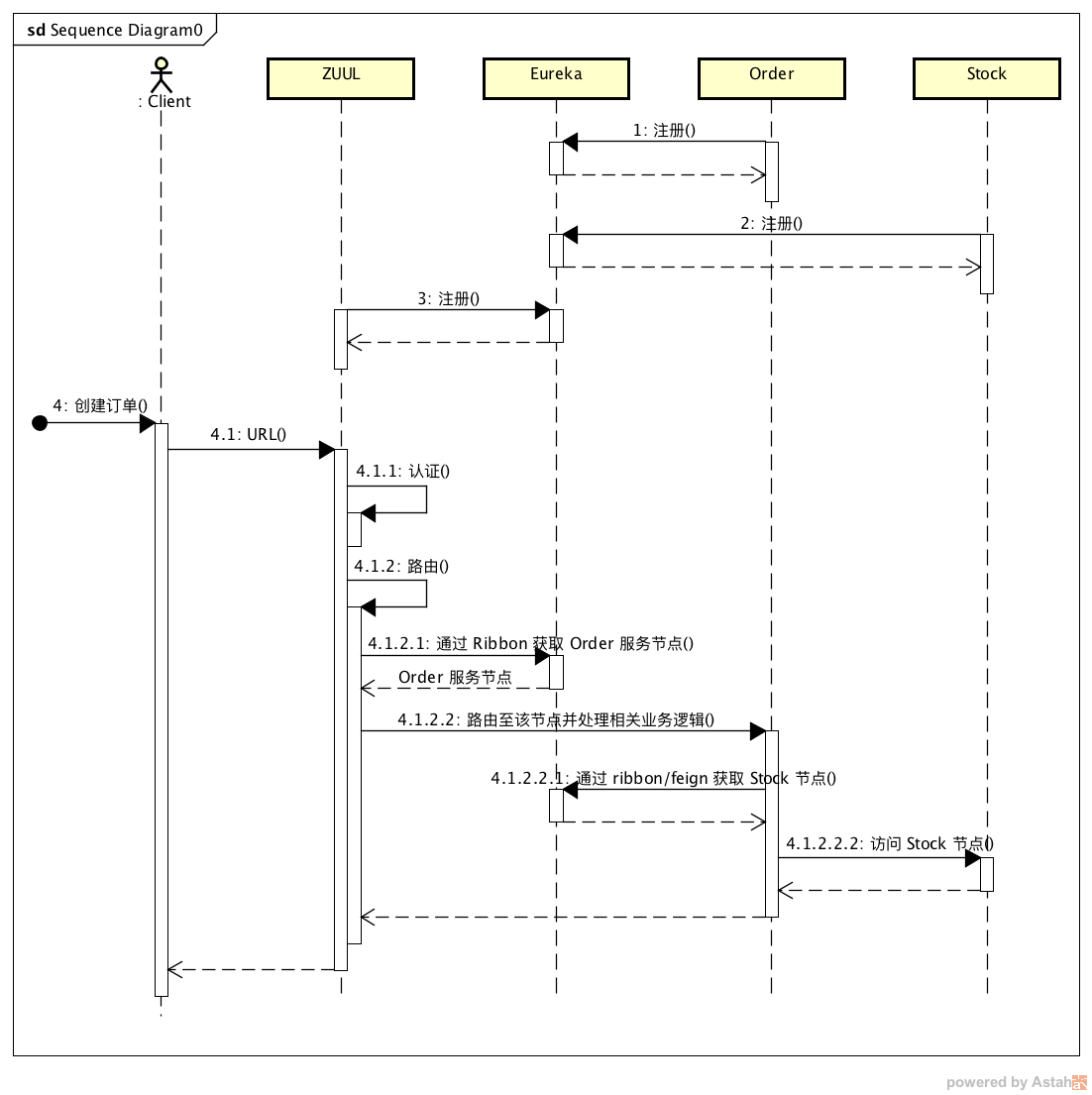

流程图

如图，描述了客户创建订单的流程图；

• 首先，所有的服务节点 Order、Stock 以及 ZUUL 都需要在 Eureka 服务中心进行注册；
• 其次，客户端通过 ZUUL 路由到指定的 Order 节点；
• 最后，Order 节点通过 Feign 调用 Stock 节点；

用例代码

microservice stock

api 模块

该模块提供 StockVO 和 IRemoteStock；StockVO 是 Order 远程调用 Stock 的 JSON 对象，IRemoteStock 是 Order 通过 Feign 远程调用时所需要的接口定义；

StockVO.java

package org.shangyang.springcloud.stock.api;

/**
 * The Stock Business Visualize Object
 *
 * @author shangyang
 *
 */
public class StockVO {

  long productId;

  String productName;

  // how many products should be reduced?
  int reduce;

  public StockVO(){

  }

  public StockVO(long productId, String productName, int reduce){
    this.productId = productId;
    this.productName = productName;
    this.reduce = reduce;
  }

  public long getProductId() {
    return productId;
  }

  public void setProductId(long productId) {
    this.productId = productId;
  }

  public String getProductName() {
    return productName;
  }

  public void setProductName(String productName) {
    this.productName = productName;
  }

  public int getReduce() {
    return reduce;
  }

  public void setReduce(int reduce) {
    this.reduce = reduce;
  }

}

IRemoteStock.java

package org.shangyang.springcloud.stock.api;

import org.springframework.cloud.netflix.feign.FeignClient;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

/**
 *
 * 该接口是放在 Order 工程中还是放在 Stock 工程中？最开始我觉得应该放到 Order 工程中，因为该接口是 HTTP Rest 接口，
 * 按照常规思维，HTTP 是由调用发发起，那么自然应该放在 Order 工程中；但是，后来想想，这样做并不太好，因为，一旦 Stock 中该接口
 * 发生变化了怎么办？1. 自然是由 Stock 开发团队来维护接口的变化更好；2. 另外，如果有其他的微服务工程，也恰好需要调用 Stock 该接口，
 * 那么同时需要由其它开发组同时更新两个地方的变化；所以，综上所述，接口定义，还是应该由 Stock 自己来维护是最好的；
 *
 * @author shangyang
 *
 */
@FeignClient("stock-service")
public interface IRemoteStock {

  @RequestMapping(method=RequestMethod.PUT, value="/stock/{productid}")
  ResponseEntity<String> reduce(@PathVariable(value="productid") long productid, @RequestBody StockVO stock );

}

该接口对应的就是 StockController#reduce 方法调用；

正如注释中所描述的那样，开始，该接口是放在 Order 微服务中还是放在 Stock 微服务中，我有过纠结；大部分教程是把类似这样的 Feign 接口是放在 Order 微服务中的；但是，如果这样做，有一个很大的问题，就是维护成本过高，试想，如果还有第二个、第三个微服务需要引用 Stock 的 Feign 接口，那不是要重复维护好几个相同的接口定义，这里既是 IRemoteStock 接口，而且，一旦 Stock 微服务中的 REST 接口放生变更，那么需要同时更新多个相同的分别位于不同微服务模块中的 IRemoteStock 接口；所以，最终，再三思考，最终决定，还是将 Feign 接口放在 Stock 模块中，远程调用接口都由自己来维护；

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.shangyang.springcloud</groupId>
    <artifactId>microservice-stock</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>stock-api</artifactId>
  <dependencies>
      <dependency>
          <groupId>org.springframework.cloud</groupId>
          <artifactId>spring-cloud-starter-feign</artifactId>
      </dependency>
  </dependencies>
  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Brixton.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>
</project>

因为 api 模块的远程接口 IRemoteStock 使用到了 Feign，所以需要在 pom 中进行相关的配置；

service 模块

StockApplication.java

package org.shangyang.springcloud;

import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class StockApplication {

  public static void main(String[] args) {
    new SpringApplicationBuilder(StockApplication.class).web(true).run(args);
  }

}

StockController.java

package org.shangyang.springcloud.stock.web;

import org.apache.log4j.Logger;
import org.shangyang.springcloud.stock.api.StockVO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

/**
 *
 * 扣减库存操作
 *
 * @author shangyang
 *
 */
@RestController
@RequestMapping(value="/stock")
public class StockController {

    private final Logger logger = Logger.getLogger(getClass());

    @Autowired
    private DiscoveryClient client;

    /**
     * 扣减库存，模拟根据 productid 来进行扣减库存
     *
     * @param productName
     * @param quantity
     * @return true if reduce success.
     */
    @RequestMapping(value = "/{productid}", method = RequestMethod.PUT )
    public ResponseEntity<String> reduce(@PathVariable long productid, @RequestBody StockVO stock) {

        ServiceInstance instance = client.getLocalServiceInstance();

        logger.info("/reduce, host:" + instance.getHost() + ", service_id:" + instance.getServiceId());

        logger.info("====> success reduced " + stock.getReduce() + " products with product id:"+productid);

        return new ResponseEntity<String>(HttpStatus.OK);

    }

}

application.properties

spring.application.name=stock-service

\# define more ports to start more application server
server.port=3000

\# Eureka 服务中心地址
eureka.client.serviceUrl.defaultZone=http://localhost:1111/eureka

• spring.application.name
  指明注册到 eureka 服务中心的注册名，这里是 stock-service
• eureka.client.serviceUrl.defaultZone
  eureka 注册中心的地址；

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.shangyang.springcloud</groupId>
    <artifactId>microservice-stock</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>stock-service</artifactId>

  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-eureka</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.shangyang.springcloud</groupId>
      <artifactId>stock-api</artifactId>
      <version>0.0.1-SNAPSHOT</version>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
          <dependency>
              <!-- Import dependency management from Spring Boot -->
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-dependencies</artifactId>
              <version>1.3.5.RELEASE</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Brixton.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

microservice order

reference 引用其它模块

因为需要远程调用 Stock 微服务，所以需要引用 Stock 微服务中的 api 模块；

api 模块

该 api 只提供对外服务的 VO，OrderVO；该接口对象主要是由客户端通过 REST 调用的 JSON 对象接口；

package org.shangyang.springcloud.order.api;

/**
 * 一个很粗略的 Order..
 *
 * @author shangyang
 *
 */
public class OrderVO {

  long orderId;

  long productId;

  String productName;

  int quantity;

  public OrderVO(){

  }

  public OrderVO(long orderId, long productId, String productName, int quantity ){

    this.orderId = orderId;

    this.productId = productId;

    this.productName = productName;

    this.quantity = quantity;

  }

  public long getOrderId() {
    return orderId;
  }

  public void setOrderId(long orderId) {
    this.orderId = orderId;
  }

  public long getProductId() {
    return productId;
  }

  public void setProductId(long productId) {
    this.productId = productId;
  }

  public String getProductName() {
    return productName;
  }

  public void setProductName(String productName) {
    this.productName = productName;
  }

  public int getQuantity() {
    return quantity;
  }

  public void setQuantity(int quantity) {
    this.quantity = quantity;
  }

  public String toString(){

    return "Order Instance: id: "+orderId+"; productId: "+productId+"; product name:"+productName+"; quantity: "+quantity;

  }

}

service 模块

OrderApplication.java

package org.shangyang.springcloud;

import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.feign.EnableFeignClients;
import org.springframework.context.annotation.ComponentScan;

@EnableDiscoveryClient
@SpringBootApplication
@ComponentScan
@EnableFeignClients
public class OrderApplication {

  public static void main(String[] args) {
    new SpringApplicationBuilder(OrderApplication.class).web(true).run(args);
  }

}

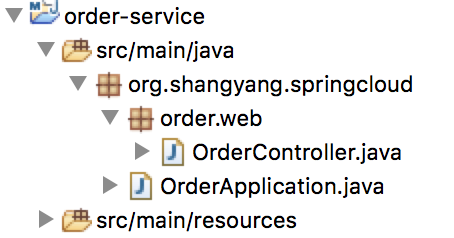

注意，如果 OrderApplication.java 是放在 package org.shangyang.springcloud.order 中会导致所引用的 Feign 接口 IRemoteStock.java 找不到，因为 IRemoteStock.java 是放在 org.shangyang.springcloud.stock.api 目录中的，OrderApplication.java 限定了 Component Scan 的路径在 org.shangyang.springcloud.order 中，自然就找不到 org.shangyang.springcloud.stock package 中的内容；所以，这里，我形成了一个不成文的规定，凡是 xxApplication，均放置在根 package org.shangyang.springcloud 中；

OrderController.java

package org.shangyang.springcloud.order.web;

import org.apache.log4j.Logger;
import org.shangyang.springcloud.order.api.OrderVO;
import org.shangyang.springcloud.stock.api.IRemoteStock;
import org.shangyang.springcloud.stock.api.StockVO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

/**
 *
 * 该用例模拟创建订单，并且在调用过程中 Order 微服务将会调用 Stock 微服务；
 *
 * @author shangyang
 *
 */
@RestController
@RequestMapping(value="/order")
public class OrderController {

    private final Logger logger = Logger.getLogger(getClass());

    @Autowired
    IRemoteStock stock;

    @Autowired
    private DiscoveryClient client;

    /**
     * 模拟生成订单接口，生成订单的同时会调用 stock 的远程接口进行库存扣减操作；
     *
     * @param orderid
     * @param productid
     * @param quantity
     * @return
     */
    @RequestMapping( method = RequestMethod.POST, consumes = "application/json") // 加上 consumes 表示该接口只接受 header 为 application/json 的接口调用
    public ResponseEntity<OrderVO> create(@RequestBody OrderVO order) {

        ServiceInstance instance = client.getLocalServiceInstance();

        logger.info("/create order, host:" + instance.getHost() + ", service_id:" + instance.getServiceId());

        // 调用 stock 微服务接口，进行库存扣减；

        ResponseEntity<String> entity = stock.reduce( order.getProductId(), new StockVO( order.getProductId(), order.getProductName(), order.getQuantity()));

        if( entity.getStatusCode().equals(HttpStatus.OK) ){
          logger.info("====> success of creating the order with order id: " + order.getOrderId() );
        }else{
          logger.error("====> failed of creating the order with order id: " + order.getOrderId() );
        }

        return new ResponseEntity<OrderVO>(order, HttpStatus.CREATED);

    }

}

注意这里饿返回类型 ResponseEntity(order, HttpStatus.CREATED); 如果是通过 RestTemplate#postForEntity 的方式进行远程调用，返回的是 ResponseEntity 对象，如果是通过 RestTemplate#postForObject 的方式进行远程调用，返回的是 OrderVO 对象；

application.properties

spring.application.name=order-service

\# define more ports to start more application server
server.port=2000

\# Eureka 注册中心地址
eureka.client.serviceUrl.defaultZone=http://localhost:1111/eureka

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.shangyang.springcloud</groupId>
    <artifactId>microservice-order</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>order-service</artifactId>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <java.version>1.8</java.version>
  </properties>

  <dependencies>
      <dependency>
          <groupId>org.springframework.cloud</groupId>
          <artifactId>spring-cloud-starter-feign</artifactId>
      </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-eureka</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.shangyang.springcloud</groupId>
      <artifactId>stock-api</artifactId>
      <version>0.0.1-SNAPSHOT</version>
    </dependency>
    <dependency>
      <groupId>org.shangyang.springcloud</groupId>
      <artifactId>order-api</artifactId>
      <version>0.0.1-SNAPSHOT</version>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
          <dependency>
              <!-- Import dependency management from Spring Boot -->
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-dependencies</artifactId>
              <version>1.3.5.RELEASE</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Brixton.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

</project>

eureka server

EurekaApplication.java

package org.shangyang.springcloud;

import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@EnableEurekaServer
@SpringBootApplication
public class EurekaApplication {

  public static void main(String[] args) {
    new SpringApplicationBuilder(EurekaApplication.class).web(true).run(args);
  }

}

application.properties

server.port=1111

eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false
eureka.client.serviceUrl.defaultZone=http://localhost:${server.port}/eureka/

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>org.shangyang.springcloud</groupId>
    <artifactId>springcloud-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>

  <artifactId>eureka-server</artifactId>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <java.version>1.8</java.version>
  </properties>

  <dependencies>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-eureka-server</artifactId>
    </dependency>

  </dependencies>

  <dependencyManagement>

    <dependencies>

          <dependency>
              <!-- Import dependency management from Spring Boot -->
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-dependencies</artifactId>
              <version>1.3.5.RELEASE</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>

      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Brixton.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>

    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

</project>

zuul server

ZuulApplication.java

package org.shangyang.springcloud;

import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.client.SpringCloudApplication;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@EnableZuulProxy
@SpringCloudApplication
public class ZuulApplication {

  public static void main(String[] args) {
    new SpringApplicationBuilder(ZuulApplication.class).web(true).run(args);
  }

}

application.properties

spring.application.name=api-gateway
server.port=8000

zuul.routes.order.path=/order-service/**
zuul.routes.order.serviceId=order-service

eureka.client.serviceUrl.defaultZone=http://localhost:1111/eureka/

ZUUL 的路由是通过上述配置实现的，通过访问前缀 /order-service/** 就可以路由向到 order-service 节点；ZUUL 是通过 Ribbon 来实现服务发现的，从 Eureka 服务中心中找到 order-service 节点的 server 地址，然后路由到 order-service 节点；

例子，http://localhost:8000/order-service/order URL 将会被路由为 http://localhost:2000/order

pox.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.shangyang.springcloud</groupId>
    <artifactId>springcloud-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>zuul-server</artifactId>

  <dependencies>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-zuul</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-eureka</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.shangyang.springcloud</groupId>
      <artifactId>order-api</artifactId>
      <version>0.0.1-SNAPSHOT</version>
      <scope>test</scope>
    </dependency>

  </dependencies>

  <dependencyManagement>

    <dependencies>

          <dependency>
              <!-- Import dependency management from Spring Boot -->
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-dependencies</artifactId>
              <version>1.3.5.RELEASE</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>

      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Brixton.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>

    </dependencies>

  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

</project>

client 调用测试

package org.shangyang.springcloud.zuul;

import org.junit.Test;
import org.shangyang.springcloud.order.api.OrderVO;
import org.springframework.http.ResponseEntity;
import org.springframework.web.client.RestTemplate;

/**
 * 模拟客户端进行测试；
 *
 * @author shangyang
 *
 */
public class ClientTest {

  static final int PORT = 8000; // ZUUL default port

  @Test
  public void testCreateOrder(){

    // http://localhost:8000/order-service/order 将会被映射到 http://localhsot:2000/order
      final String uri = "http://localhost:"+PORT+"/order-service/order";

      OrderVO order = new OrderVO(1000, 2000, "macbook", 10);

      RestTemplate restTemplate = new RestTemplate();

      ResponseEntity<?> result = restTemplate.postForEntity(uri, order, null);

      System.out.println(result);

  }

}

至此，一个完整的最为基础的 Spring Cloud 测试用例就搭建完成了；

代码下载

从我的 github 中下载，https://github.com/comedsh/spirngcloud-demo
